    I-SGL130165 iibheringi ze-Angular zoqhagamshelwano ze-roller SGL Umfanekiso ofakiweyo
    • SGL130165 iibheringi zoqhagamshelwano ze-Angular SGL

    SGL130165 iibheringi zoqhagamshelwano ze-Angular SGL

    Inkcazelo emfutshane:

    Ukuchaneka okuphezulu ngokukodwa kwe-angular contact roller bearings i-SGL iphunyezwa ngendlela echanekileyo, eyenziwe ngoomatshini, eqinile kunye namakhonkco aphantsi komhlaba kunye neprofayili ye-triangular.

    I-roller kunye nendibano ye-cage evela kwiplastiki engagugiyo ilungiselelwe phakathi kwamakhonkco okuthwala.

    Uninzi lweebheringi ze-angular zoqhagamshelwano ze-SGL zihambelana nochungechunge lwe-dimension 18 kwaye ngoko ke ziyatshintsheka kunye neebheringi zebhola zokudibanisa i-718.

    Ukuthwala kunika ngokukodwa iyunifomu kunye ne-low-friction esebenzayo kwaye ifanele isantya esiphezulu.

    I-angle yoqhagamshelwano yegama ngu- = 45 °. Olu luyilo lufaneleke ngokufanelekileyo kwi-axial, i-radial kunye nemithwalo yomzuzu wokuthambeka.


    Iinkcukacha zeMveliso

    Iithegi zeMveliso

    SGL130165 iibheringi zoqhagamshelwano ze-Angular SGLiinkcukachaIinkcukacha:

    Izinto eziphathekayo: 52100 Chrome Steel

    I-engile yoqhagamshelwano: 45°

    Ukupakisha : Ukupakisha kwimizi-mveliso okanye ukupakisha ibhokisi enye

    Isantya sokubhekisela: 1800 rpm

    Ukunciphisa isantya : 500 rpm

    Ubunzima: 0.64 kg

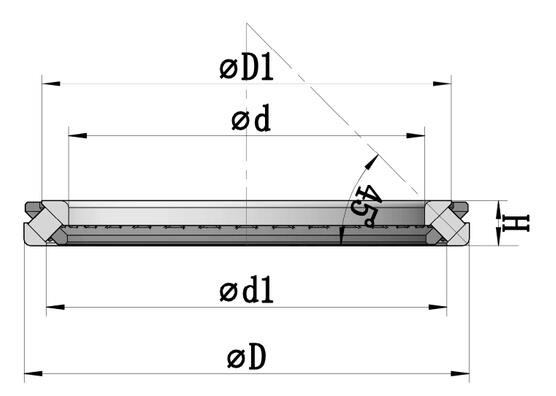

    Engundoqo Imilinganiselo:

    Ibhore ububanzi (d) : 130 mm

    Idayamitha yangaphandle (D) : 165 mm

    Ubude (H) : 17.5 mm

    D1 : 146 mm

    d1: 149 mm

    yena: 73.75 mm

    Imilinganiselo yokunyuka :

    Ubukhulu: 146 mm

    db: 149 mm

    Db min: 166 mm

    s: 1.5 mm

    I-radial Dynamic load ratings (Cr) : 28.50 KN

    Iireyithingi zomthwalo weRadial Static (Cor) : 52.00 KN

    Iireyithingi zomthwalo we-axial Dynamic (Ca) : 68.00 KN

    Iireyithingi zomthwalo we-axial Static (Coa) : 260.00 KN

    Ukudinwa umda imithwalo (Cur N) : 6.00 KN

    Ukudinwa umda imithwalo (Cua N) : 24.40 KN

    QQ截图20220919093410
